Reshape bling-fill objects

	Use Select > Select Object to resize objects using selection handles.
	Use Reshape > Reshape Object to reshape selected bling run objects.

When reshaping a bling-fill object you can reshape object outlines in the normal way. When Column Fill is applied, you can graphically change the fill angle and curve line as well.

To reshape a bling-fill object...

• Select the bling-fill object.

• Click the Reshape icon or press the H key.

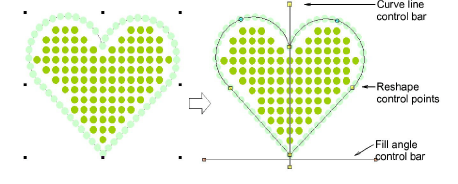

Control points appear around the object outline. If column fill is selected, two other control bars appear – one (orange handles) to control fill angle, and the other (yellow handles) to control curve lines.

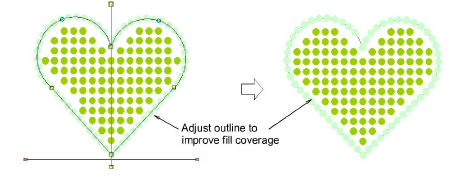

• Reshape the outline in the normal way.

In this case, we adjust the outline only slightly to improve the bling fill coverage.

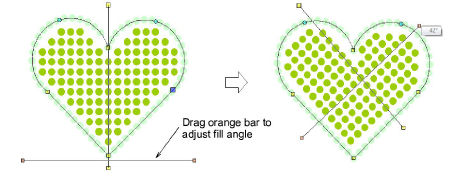

• Adjust fill angle control as desired.

• Adjust curve line control as desired.

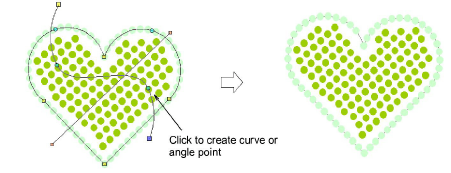

Right or left-click anywhere along the line to add curve or angle points. Curve line adjustments have no effect on object properties.
